Processing centers

Fazekas Kft. – HURCO VMX 10I

Technical data



Table size size:

T-slots:

Max. load:

 760 x 405 mm
3 x 18 x 100 mm
340 kg
Axis travels: X-axis:Y-axis:
Z-axis: 		 660 mm
410 mm
510 mm
Tool changer number of pockets:

max. tool diameter:
max. tool length:

max. weight:

 2089mm
250mm
7 kg
Spindle – motor Output:

Torque:

 11 kW
74 Nm
Main spindle DIN 69871 tool clamping
Main spindle-table distance:
max. speed:		 SK-A40

100-610 mm
10.000 / min.

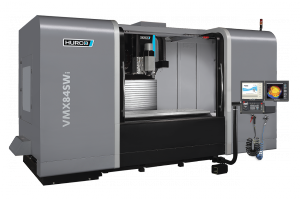

Fazekas Kft. – HURCO VMX 84I

Technical data



Table size size:

T-slots:

Max. load:

 2180 x 865 mm
7 x 18 x 125 mm2250 kg
Axis travels: X-axis:Y-axis:
Z-axis: 		 2135 mm
865 mm760 mm
Tool changer number of pockets:

max. tool diameter:
max. tool length:

max. weight:

 40

75 mm
300 mm
15 kg
Orsó- motor Output:

Torque:

 18 kW
237 Nm
Főorsó DIN 69871 tool clamping
Main spindle-table distance:
max. speed:		 SK 40

150-910 mm
12000 / min.

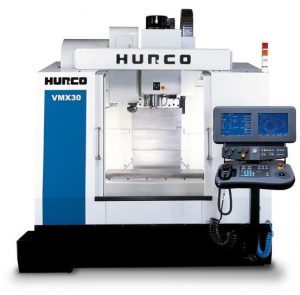

Fazekas Kft. -HURCO VMX-30 CNC PROCESSING CENTER

Technical data

Table size (mm) 1020 x 510
T-slot (mm) 5 x 18 x 100
Max. table load capacity (kg) 1000
Axis travels (mm):
    X- axis 760
    Y- axis 510
    Z- axis 610
Main spindle output (kw) 13,5
Main spindle-table distance (mm) 150 – 760
Main spindle speed (r/min) 10 – 12.000
Torque (Nm) 214
Tool changer
   DIN 69871 tool clamping SK-A40
   Number of places 24
   max. tool diameter 80 mm
   max. tool length 300 mm
   max. tool weight 7 kg

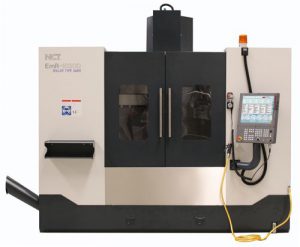

Fazekas Kft. -HURCO VMX- NCT EML-850 – PROCESSING CENTER

WORKSPACE:

  • Table size: Ø250 mm
  • Table load capacity: 100 kg

AXIS:

  • X stroke: 850 mm
  • Y stroke: 510 mm
  • Z stroke: 510 mm
  • A- axis: +/- 100°
  • C- axis 360°

MAIN SPINDLE:

  • Max. speed (basis): 8000 FPP
  • Number of tool sockets: 20 (opt. 24, 32

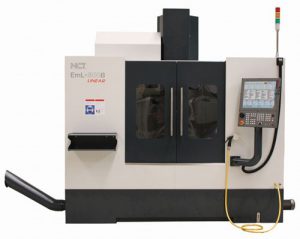

Fazekas Kft. – NCT EML-800 – PROCESSING CENTER

WORKSPACE:

  • Table size: 950 x 500 mm
  • Number x size x distance of T grooves: 5 x 18 x 100 mm
  • Table load capacity: 500 kg
  • Main spindle-table distance: 140 – 650 mm
  • Main spindle axis distance from the column: 556 mm
  • Accuracy of positioning: < 0,02 mm
  • Repeatability: < 0,008 mm

AXIS:

  • X stroke: 850 mm
  • Y stroke: 510 mm
  • Z stroke: 510 mm
  • Maximum feed rate: 30 MPP

MAIN SPINDLE: Max. speed : 8000 FPP
TOOLING:

  • Number of tool sockets: 16
  • Max. tool length: 300 mm
  • Max. tool diameter: 100 mm
  • Max. tool weight: 6 kg

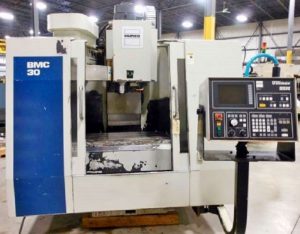

Fazekas Kft. – HURCO-BMC 30

Description:

  • ULTIMAX 4 controller, double LCD screen, software version 2.37
  • Table size: 1020 x 400 mm
  • X stroke 762 mm
  • Y stroke 510 mm
  • Z stroke 610 mm
  • Main spindle cone SK40
  • Magazine of 24 tools
  • Speed 40 – 8000 r/min
  • Rapid travel 10 m/minute
  • Output 11 kW
  • Total electricity demand 18 kVA
  • Size 2200 x 2350 x 2650 mm

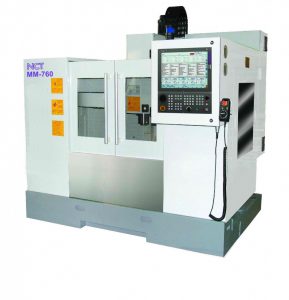

Fazekas Kft. – NCT MM-760 MILLING MACHINE

Technical data

Travel range (x, y, z) 520 x 370 x 300 mm
max. work piece size (x,y,z) 790 x 730 x 300 mm
max. work piece weight 650 kg
U, V axis travel range +/-60 mm
Auto wire feed yes
Submerged cut yes
Cooling unit yes
